Beet piler “Complex 65М2B3-K” consists of transport and clearing units and packing unit as well and platforms that are used for unloading motor vehicles. It has two unloading platforms that are located on either side of the central conveyor and are used to unload drop-side trucks and articulated lorries (side platform) and to unload drop-side trucks, semi-trailers and dump trucks (longitudinal platform), which operate alternatively. Our company started to produce this type of beet piler in series in 1980. The first pilers of this modification were equipped with side and longitudinal tipping platforms with load capacity of 18 tons and 30 tons respectively and also had short packing conveyor (length 15m). Over time, the requirements of engineers of sugar plants changed and the specified piler has undergone many changes and improvements.
Currently commercial beet piler “Complex 65М2B3-K” is equipped with the longitudinal tipping platform for unloading of drop-side trucks, dump trucks and semi-trailers with gross weight in 60 t and side tipping platform for unloading of drop-side trucks and trucks with trailers with weight up to 30 t.
Our company is always ready to meet the needs of our customers and if needed, when placing an order, you can make certain changes in the design of the platforms as well as in the design of beet piler without changing its main purpose - unloading, cleaning and packing beet piles.
The main characteristics of this type of beet piler are its mobility, small dimensions in comparison with other types of beet pilers, possibility to operate at the close-factory area and peripheral beet receiving stations on the paved sites as well as on compacted ground beet pile fields, including ones without power network. Tractor DT-75 and its modifications are used as power drive.
The disadvantages of this model currently include the high cost of diesel fuel thereby increasing the costs of cleaning and forming of 1 ton of beet as well as costly repair of the diesel engine.
| № | Parameter | Values |
| 1. | Capacity, not less than, t/hour | 135 |
| 2. | Availability factor, not less than | 0,96 |
| 3. | Dimensions of formed beet pile, m: | |
| height, not more than | 6 | |
| width at the bottom | 33 | |
| 4. | Angle of rotation of packing conveyor, degree | |
| to the right | 53±2 | |
| to the left | 53±2 | |
| 5. | Overall dimensions of piler, not more than, mm | |
| length (without packing conveyor) | 22200 | |
| width (without conveyor for waste discharge) | 12500 | |
| height (with packing conveyor lowered) | 5100 | |
| length of packing conveyor | 18000 | |
| 6. | Weight of piler, not more than, t | 46 |
| 7. | Travel speed, not more than, km/hour | |
| forwards (first speed) | 5,45 | |
| backwards | 4,67 | |
| 8. | Road clearance in transport position, not less than, mm | 200 |
| 9. | Efficiency of beet cleaning from accompanying impurities % to total contamination, not less than, % | 30 |
| 10. | Maximum load capacity of side tipping platform, t | 30 |
| 11. | Capacity of longitudinal tipping platform, t | 60 |
| 12. | Specific fuel consumption, not more than, kg/t | 0,13 |
| 13. | Design service life, not less than, h | 7000 |
Beet piler “Complex 65М2B3-К” corresponds to technical specifications TU U 29.5-25494693.

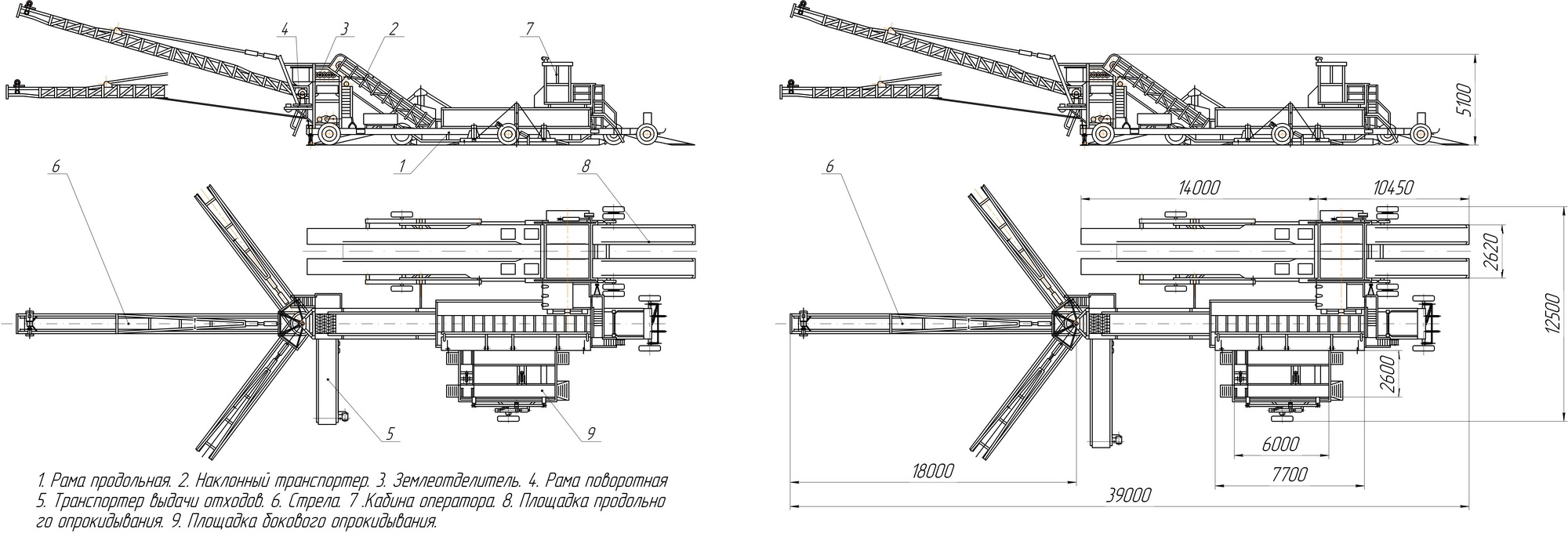

Schematic view of beet piler «Complex 65М2B3-К»
