SH1-PKF. Main technical characteristics
Parameter SH1-PKF
1. Capacity, t/hour 250
2. Lifting capacity of platforms, t
  longitudinal 60.0
  side 50.0
3. Length of tipping platforms, m
  longitudinal 14.5
  side 14.8
4. Angle of platform elevation, degree 45
5. Piler overall dimensions, m
  length 45.0
  height 7.2
  width 13.2
6. Weight, t 90
7. Stacking conveyor length, m 25.5
8. Minimum height of the piling conveyor lowering, m 0.7
9. Angle of rotation of the piling conveyor, degree
  to the right 70
  to the left 70
10. Dimensions of formed beet pile, m
  height 9.0
  width at the bottom 70.0
11. Percent of beet cleaning (at the degree of dirt not more than 10% in dry weather, %) 50.0
12. Power demand, kW, not more 75
13. Power consumption, kW*h/t of beet 0.28
14. Beet damage rate, % 8.0
15. Delivery time, days 180

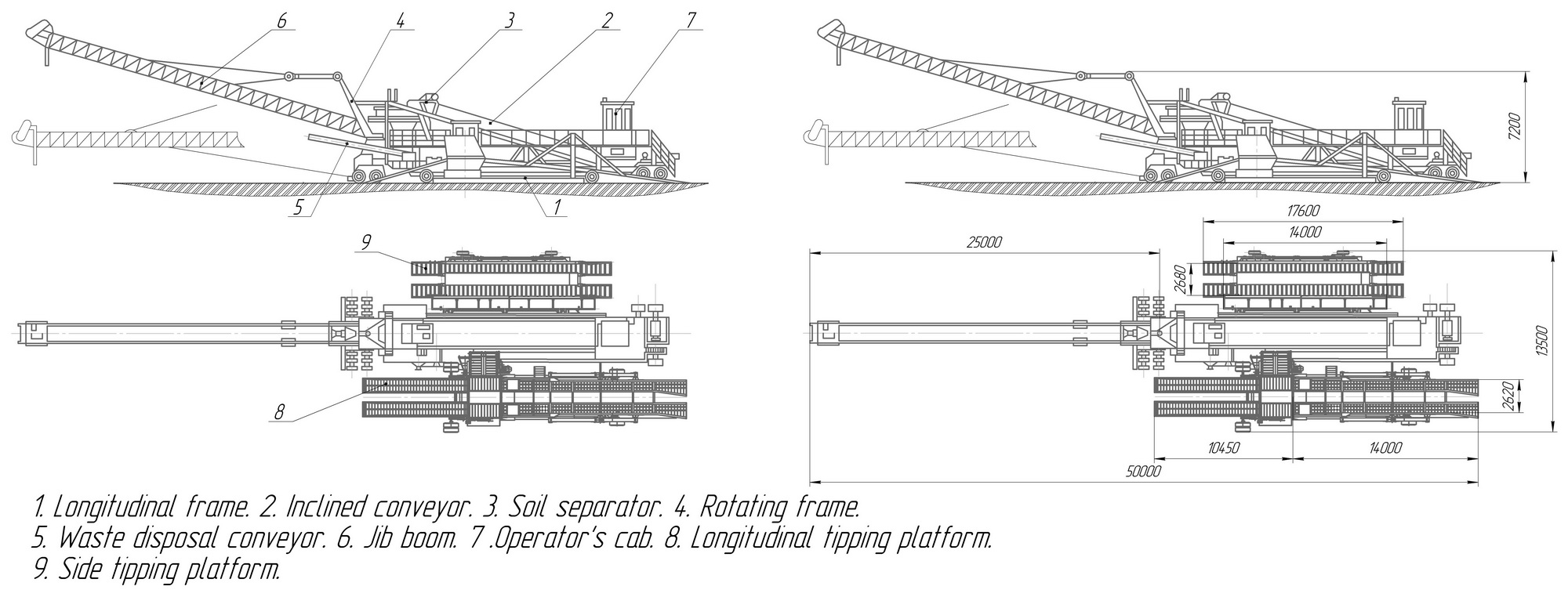

Schematic representation of the beet piler SH1-PKF.

shema SH1PKF eng
